TWIN IMPELLER MULTISTAGE PUMPS
Applications and installation
The SKP series are with two back-to-back impellers centrifugal pumps, are developed for higher head valve than single impeller pumps and have extremely high outputs. They are suitable for pumping clean water and chemically non-aggressive liquid, reliable, economical and simple to use. They can be used for pressure boosting washing systems, cooling and fire-fighting units , Industrial water supplying, horticultural and agricultural irrigation applications, civil and domestic water transfer schemes, boiler, chiller and refrigeration systems.
Operating Limitations
Max ambient temperature up to 40℃
Max fluid temperature up to 40℃
Max pressure up to 10 bar
230-380 VOLT 50 HZ
Construction Features
Pump Body: cast iron
Wire: % 100 Copper
Shaft: stainless steel
Impeller: brass
Protection Class: IP44

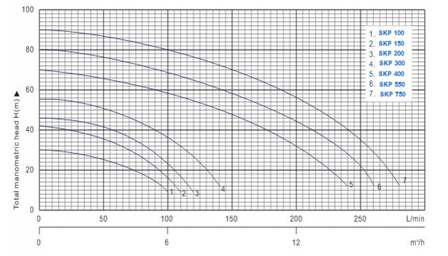

TWIN IMPELLER MULTISTAGE PUMPS | |||||||||
TYPE | HP | DN | DELIVERY (m3/h) | ||||||
1 | 2 | 3 | 4 | 5 | 6 | ||||
SKP 100 | 1 | 11/4"-1" | Hm | 30 | 28 | 25 | 22 | 10 | 7 |
SKP 150 | 1.5 | 11/4"-1" | 40 | 38 | 35 | 25 | 22 | 10 | |
SKP 200 | 2 | 11/4"-1" | 44 | 43 | 40 | 30 | 25 | 15 | |
SKP 300 | 3 | 11/4"-1" | 52 | 45 | 40 | 35 | 30 | 20 |
TYPE | HP | DN | DELIVERY (m3/h) | ||||||
1 | 4 | 5 | 6 | 10 | 12 | ||||
SKP 400 | 4 | 11/2"-11/4" | Hm | 65 | 60 | 58 | 55 | 40 | |
SKP 550 | 5.5 | 11/2"-11/4" | 77 | 70 | 75 | 72 | 62 | 55 |
Model | Power | Current | R.P.M | Q.max | H.max | S.Head | N.W | PACKAGE DIMENSION&GW | ||||||
HP | kW | 220 V | 380 V | (l/min) | (m) | (M) | (kg) | A | B | H | Kg | |||
SKP 100 | 1 | 0.75 | 5 | 1,8 | 2850 | 100 | 35 | 7 | 18,8 | 380 | 210 | 240 | 19,5 | |
SKP 150 | 1,5 | 1,1 | 7 | 2,7 | 2850 | 130 | 46 | 7 | 23,5 | 415 | 245 | 290 | 24,3 | |
SKP 200 | 2 | 1,5 | 9,6 | 3,5 | 2850 | 140 | 52 | 7 | 24,5 | 415 | 245 | 290 | 25,5 | |
SKP 300 | 3 | 2,2 | 13,5 | 5 | 2850 | 200 | 60 | 7 | 31 | 480 | 290 | 350 | 32.2 | |
SKP 400 | 4 | 3 | 0 | 7,2 | 2850 | 240 | 70 | 7 | 39 | 480 | 290 | 350 | 40.5 | |
SKP 550 | 5,5 | 4 | 0 | 9,3 | 2850 | 260 | 84 | 7 | 42.5 | 480 | 290 | 350 | 43.8 | |
SKP 750 | 7,5 | 5,5 | 0 | 14,1 | 2850 | 280 | 90 | 7 | 62 | 480 | 290 | 350 | 64 |
