PHERIPHERAL PUMPS
Applications and installation
SP series of clean water pump belongs to the vortex pump that directly coupled between electric machine and pump body. They possess the advantages of more simple construction, smaller measurement, lighter weight, higher head, but with less flow quantity. They are suitable for pumping clean water. It is particularly suitable for domestic applications such as supplying water from well, pool, etc. It is also suitable for water pressure boosting, gardening and automatic water supplying if combined with other appliances.
Oparating Limitations
Max ambient temperature up to 40℃
Max fluid temperature up to 40℃
Max pressure up to 10 bar
230 VOLT 50 HZ
Consturation Features
Pump Body: cast iron
Wire: % 100 Copper
Shaft: stainless steel
Impeller: brass
Protection Class: IP44

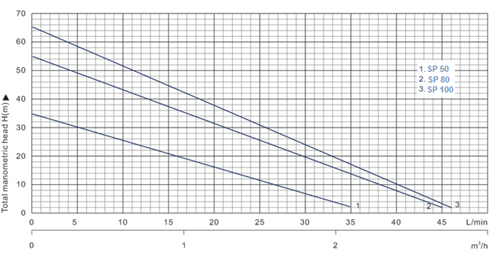

PHERIPHERAL PUMPS | |||||||||
TİP | HP | DN | DELIVERY (m3/h) | ||||||
0 | 1,2 | 1,5 | 1,8 | 2 | 2,4 | ||||
SP 50 | 0,5 | 1" | Hm | 35 | 19 | 12 | 8 | 12 | 5 |
SP 80 | 0,75 | 1" | 55 | 33 | 27 | 21 | 19 | 10 | |
SP 100 | 1 | 1" | 65 | 40 | 33 | 25 | 20 | 13 |
Model | Power | Voltage (V) | Current (A) | Max. Flow (l/min) | Max. Head (m) | Max. Suction (m) | Pipe | Overal | Weight (kg) | |
Dimension | ||||||||||
KW | HP | (inch) | (cm) | |||||||
SP 50 | 0.37 | 0,5 | 230 | 1,6 | 35 | 35 | 6 | 1"x1" | 28X14.5X17 | 5,5 |
SP 80 | 0.55 | 0,75 | 230 | 3,6 | 40 | 60 | 1"x1" | 33X18X20 | 10 | |
SP 100 | 0.75 | 1,0 | 230 | 3,8 | 45 | 70 | 1"x1" | 33X18X20 | 11 |
