SEWAGE SUBMERSIBLE PUMPS – DVX 25-35

Applications and installation

These pumps are used for transfer of sewage and rain water, The float switch can automatically control on and off with the change of the liquid level. The protector in the motor can automatically cut off the power when it if overheated or overcurrented, thus gua rantee the security and reliability of pump’s run even in the atrocious environment.

TECNICAL DETAILS
Model :  DVX 25 DVX 35
Power(hp)： 0.25 0.35
Outlet diameter(mm)： 40 40
Voltage(V/Hz)： 230/50 230/50
Max.flow(l/min)： 133(8m3/h) 150(9m3/h)
Max.head(m)： 7 7.5
G.W.(kg)： 8.5 9.5
Max diam. of partıculs(mm) 15 15
Dimensions(cm)： 18.5X18.0X36.5 18.5X18.0X38.5

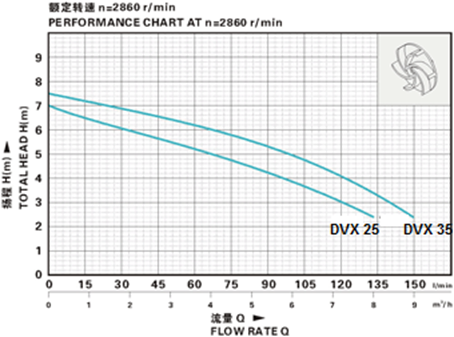

SUBMERSIBLE SEWAGE PUMPS
TYPE HP DN    DELIVERY (m3/h)
0 2 3 5 7 9
DVX 25 0,25 11/2" MSS 7 6 5 4 3
DVX 35 0,35 11/2" 8 7 6 5 4 3
